GO SAIL CARGO

STORNAWAY 25-30

This is an updated version, a little bigger and more capable with an elegant fantail stern. There is an increased sail area and greater load capacity. A smaller sail area is available for use where the winds are stronger or for training purposes.

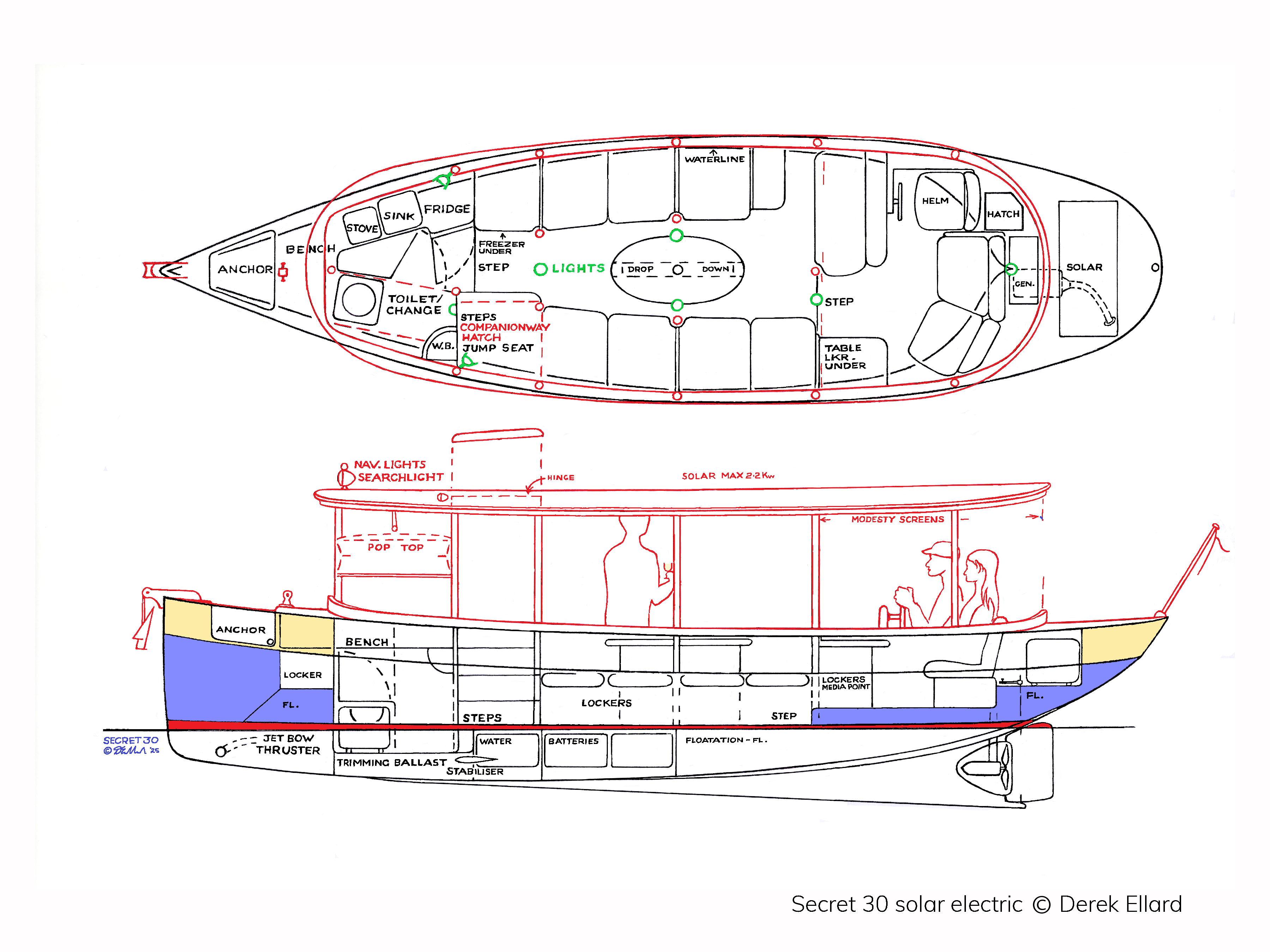

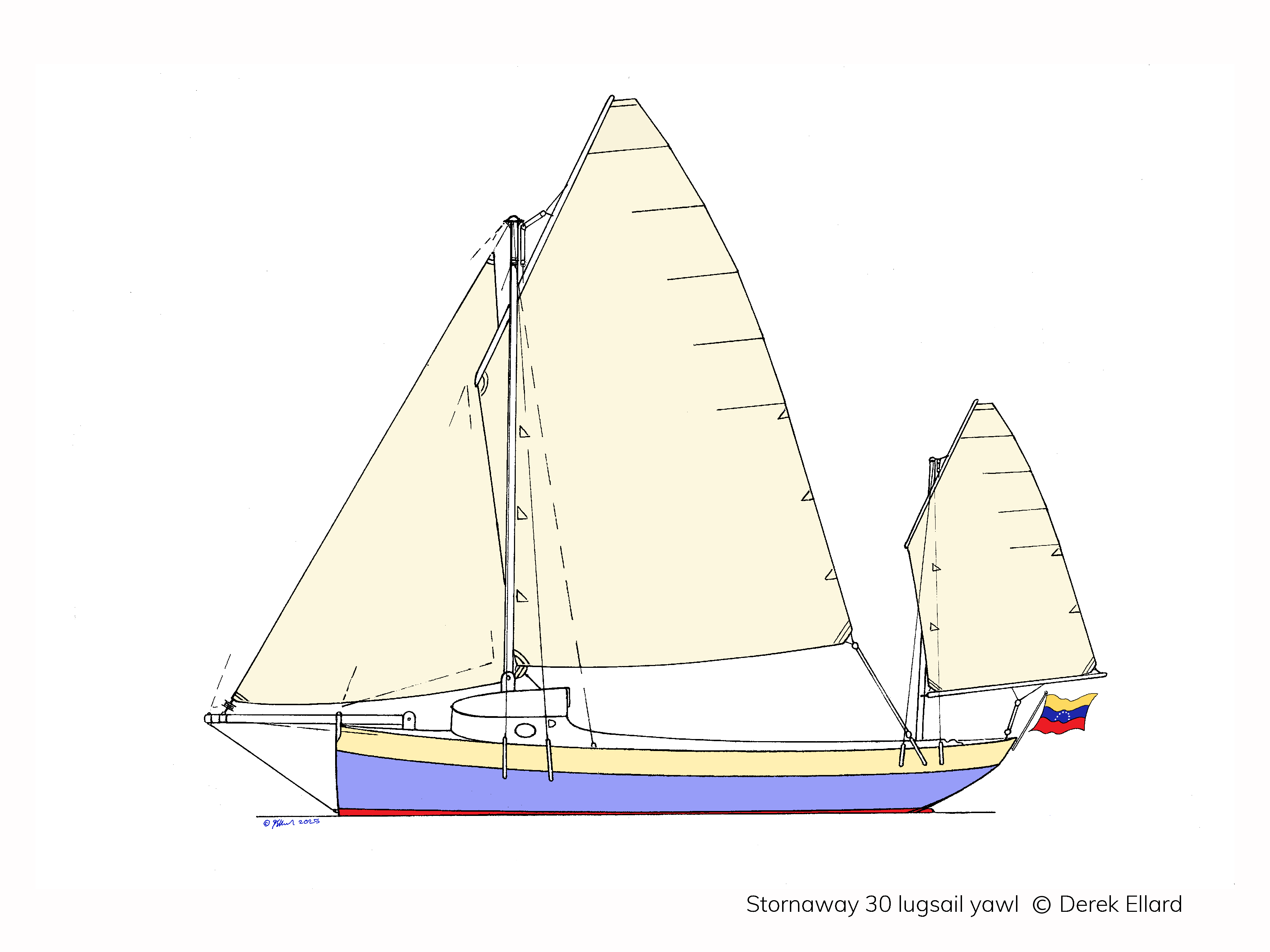

The Stornaway 30 is available in multiple custom versions with two rigs – lugsail yawl and gaff cutter – and four versions with a fixed keel or centreboard. Also available is an all-electric fantail passenger launch, the Secret 30, with a solar-panelled canopy. All models share the same hull. Illustrated is a two-berth lugsail yawl with a cargo capacity of 2.2 tonnes and the all-electric Secret 30. All 30s are fully zero emission but with emergency generators. The boats will be fast, stable, sea-kindly and easily sailed by one. They are for greenwash-free eco-tourism, ferry services, coastal voyaging, cargo, ships boats, sail training, research and private adventuring.

Some features:

— Timber/composite/marine ply hulls with GRP production planned

— Retractable electric pod drives, extended range, auto positioning

— Fixed and water ballast

— 2–6 berths, 14 passengers or 5 pallet capacity

— Full custom design service

— Brailing lines to the lug main for instant depowering

— Timber and carbon fibre spars

— Optional storm jib, gennaker and staysail

— Extended spray covers, drop down screens and boom tents

— Multiple versions with unlimited potential

For full details download PDF


IMAGES



SPECIFICATIONS

LOD
9.2 metres
BEAM
2.45 metres
LWL
8.3 metres
BALLAST
0.55 tonnes lead fixed plus water ballast
CONSTRUCTION
New generation fibreglass engineered for maximum stability and long service life
DRAUGHT
1.0 metres fixed keel verion   
0.7 centreboard/launch
RIG
Lugsail yawl or gaff cutter
SAIL AREA LUGSAIL YAWL
48 sq metres    (optional 30 sq metres)
plus storm jib and staysail
TOP SPEED
7 knots
BERTHS
2 fixed (optional 6)   passengers 10–14
CARGO
4 pallets, 5 wine casks to 3 tonnes
AUXILLIARY ENGINE
6kw electric retractable with long-range batteries and solar
SAFETY
Self-righting (fixed keel) multiple watertight and foam-filled compartments. Brailing lines to the mainsail plus roller furling jib for instant depowering
DESIGNER
Derek Ellard
